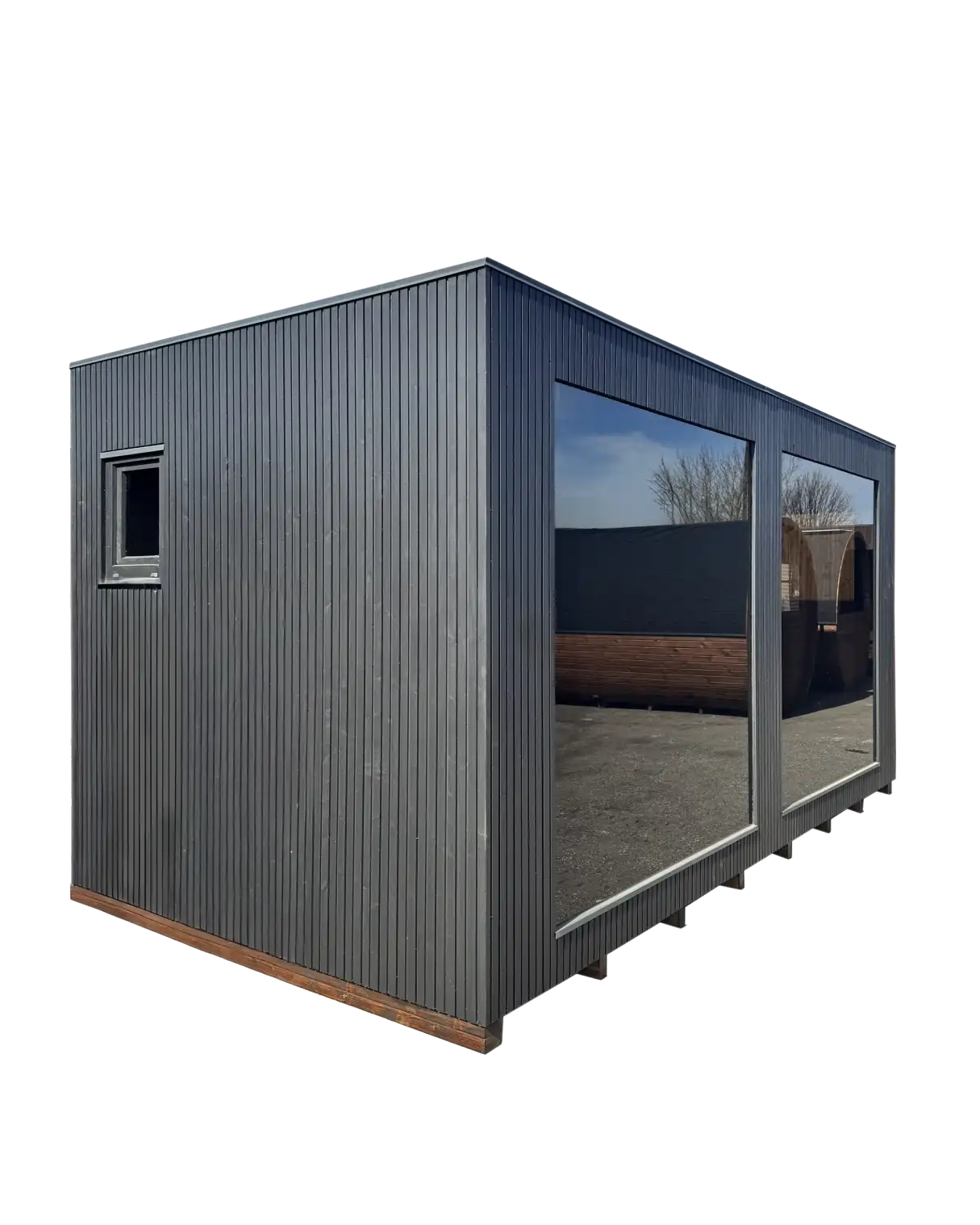

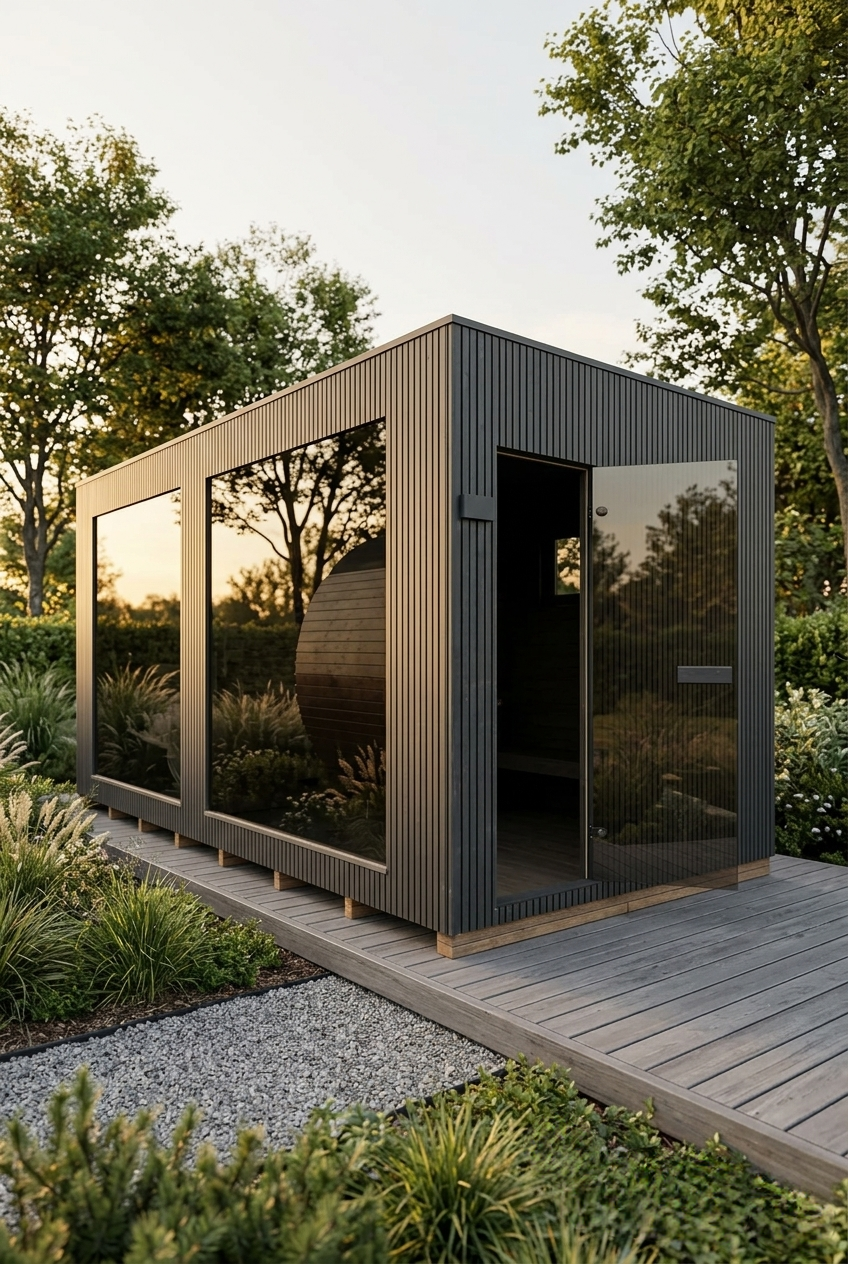

TAVO Panoramic Sauna Comfort M

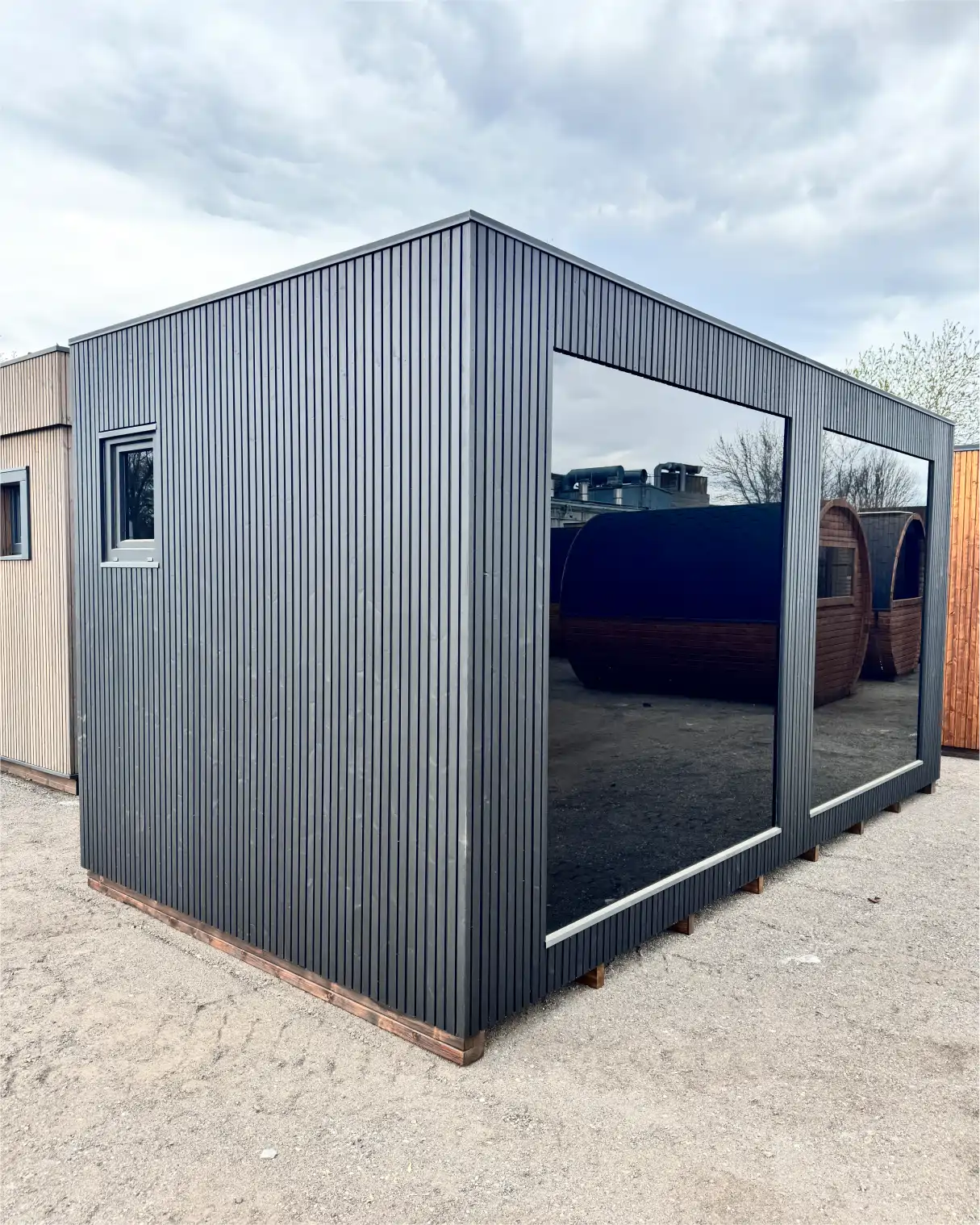

TAVO Sauna Comfort M Black
TAVO Panoramic Sauna Comfort M - Image 3
TAVO Panoramic Sauna Comfort M - Image 4
TAVO Panoramic Sauna Comfort M - Image 5

TAVO Panoramic Sauna Comfort M

→ Fully assembled and ready for use sauna with relax room.
→ Wall construction: spruce timber beams (40 × 95 mm).
→ Exterior cladding: spruce W-profile boards (18 mm).
→ Standard exterior painting: transparent grey, brown, teak, black, red or silver grey finish.
→ PVC roofing system (grey).
→ Sauna flooring: untreated spruce terrace boards.
→ Anteroom flooring: wood fiberboard with vinyl flooring.

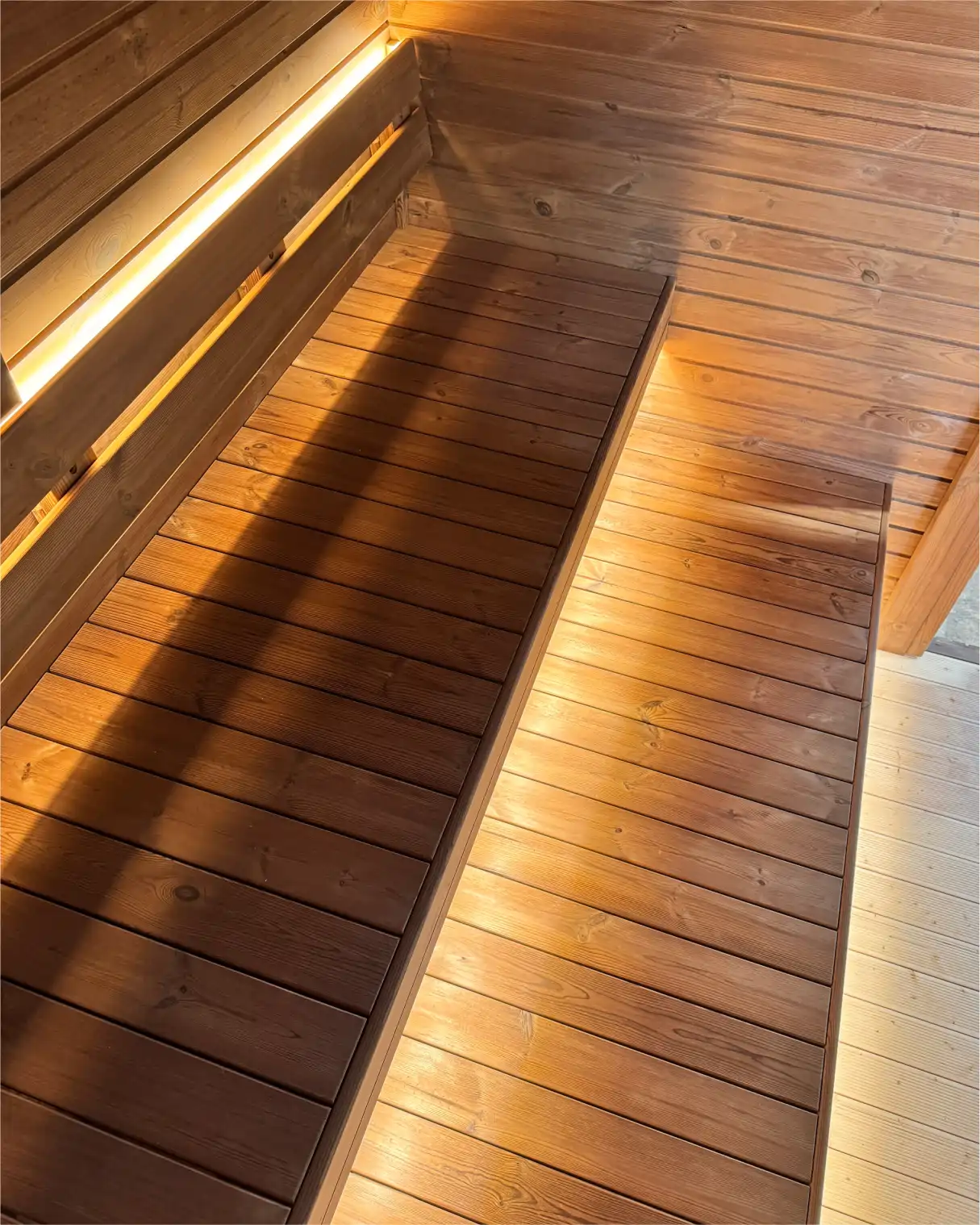

→ Two-tier straight-design thermowood benches (2 units) with full-length integrated backrests.
→ Closed gap between benches, with a removable cover panel between the bench and the floor.
→ Black surface-mounted electrical distribution box for circuit breakers (IP65 rated).
→ Covered electrical outlet in the changing room.
→ 4 LED light strips inside the sauna: behind the backrest and under the benches.
→ 2 LED light strips inside the anteroom.
→ 2 doors: exterior and sauna doors, 6 mm tempered tinted glass.
→ Ventilation system: 2 vents in the sauna and 1 vent in the anteroom.
→ Sauna window: 10 mm tempered, tinted glass (185 × 195 cm).
→ Anteroom window: 10 mm tempered, tinted glass (185 × 195 cm).
→ Opening window in the anteroom: 6 mm tempered tinted glass (50 × 60 cm).

→ The heater is not included in the standard price.
→ Custom painting available at an extra cost.

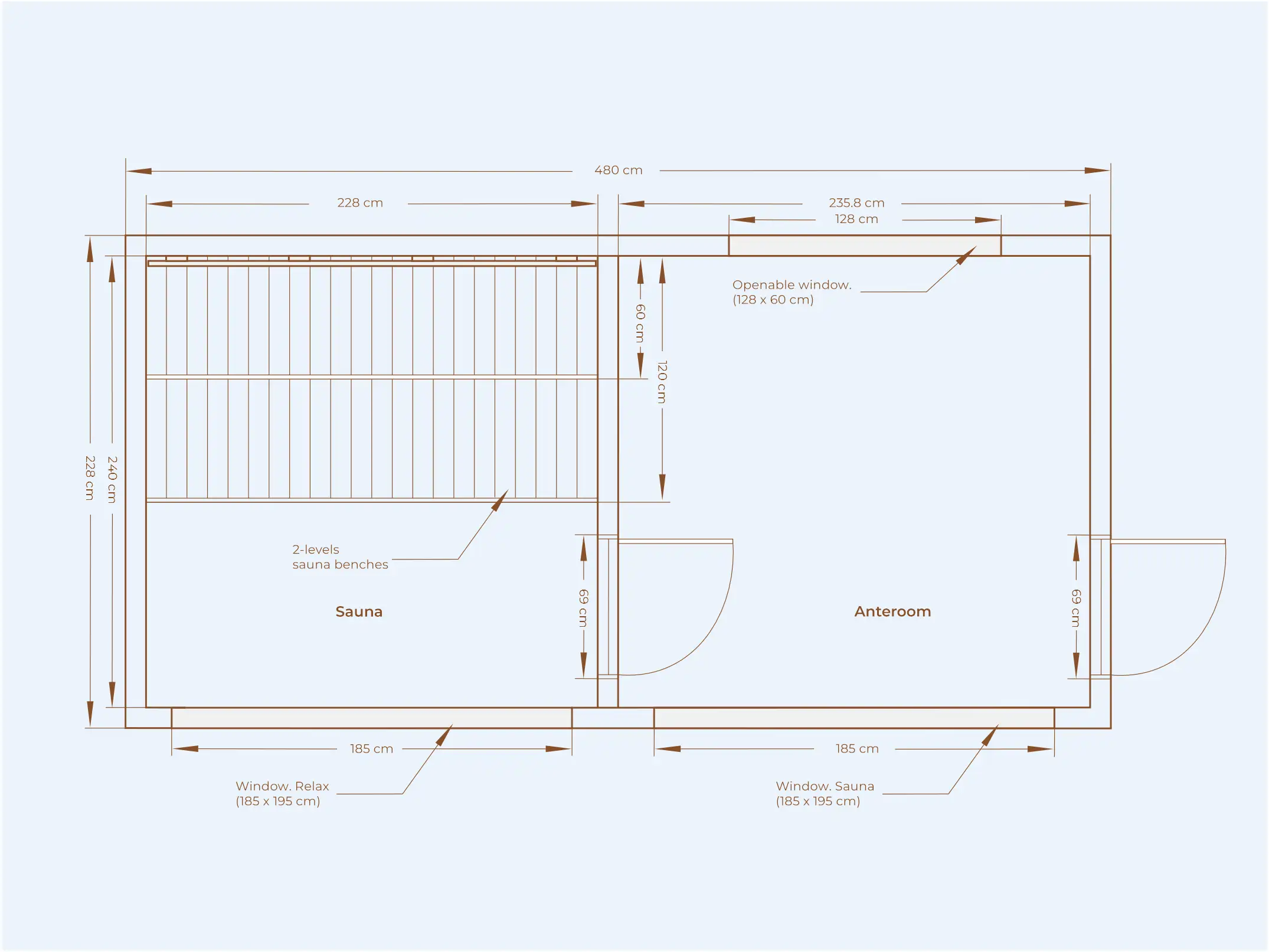

Features and dimensions of TAVO panoramic sauna
External dimensions: 240 x 480 cm
External height, front/rear: 250/230 cm
Internal height, front/rear: 225/209 cm
Internal sauna dimensions: 228 x228 cm
Internal anteroom dimensions: 228 × 235.8 cm
Weight  1900 kg
Heater Wood fired or electric

Please note: the product shown in the photos may include optional features not included in the standard version.

Have questions? Contact us at +37069218853 or sales@maudis.eu

Become a dealer
Get your price quote
Standard painting
Finished in transparent teak, grey or brown — or left unpainted. All options included at no extra cost.

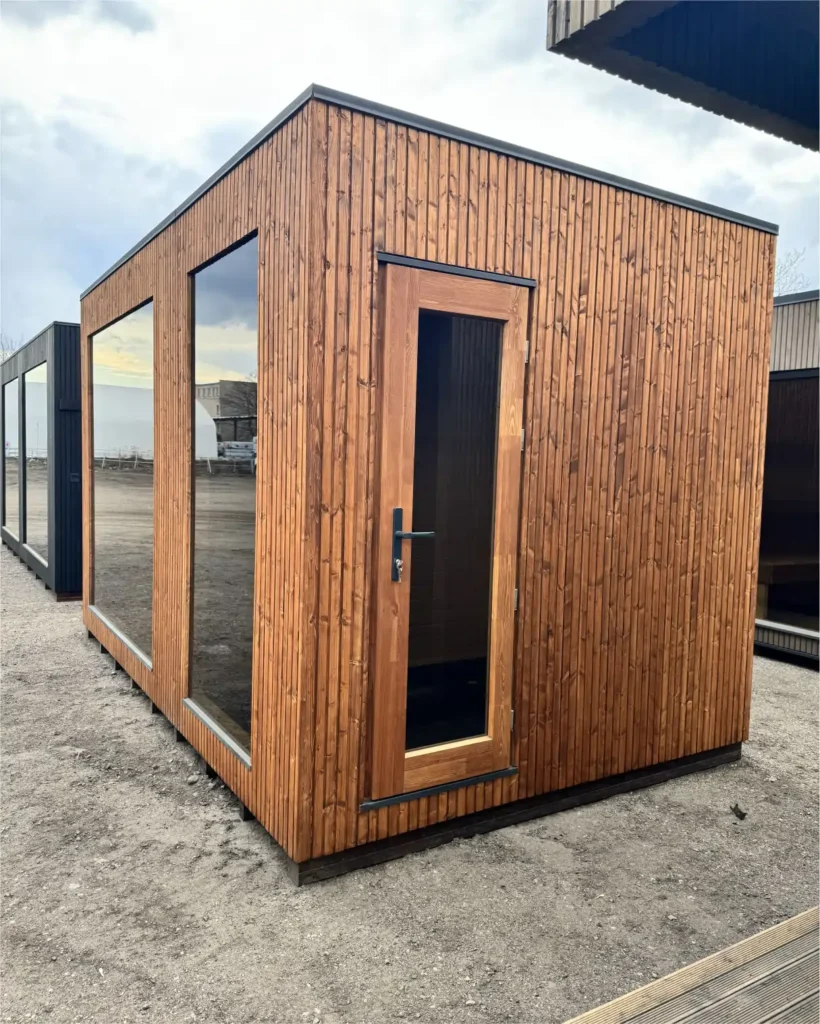

Wooden exterior door
Wooden exterior door with tinted glass and lock.
Wooden exterior door with tinted glass and lock.

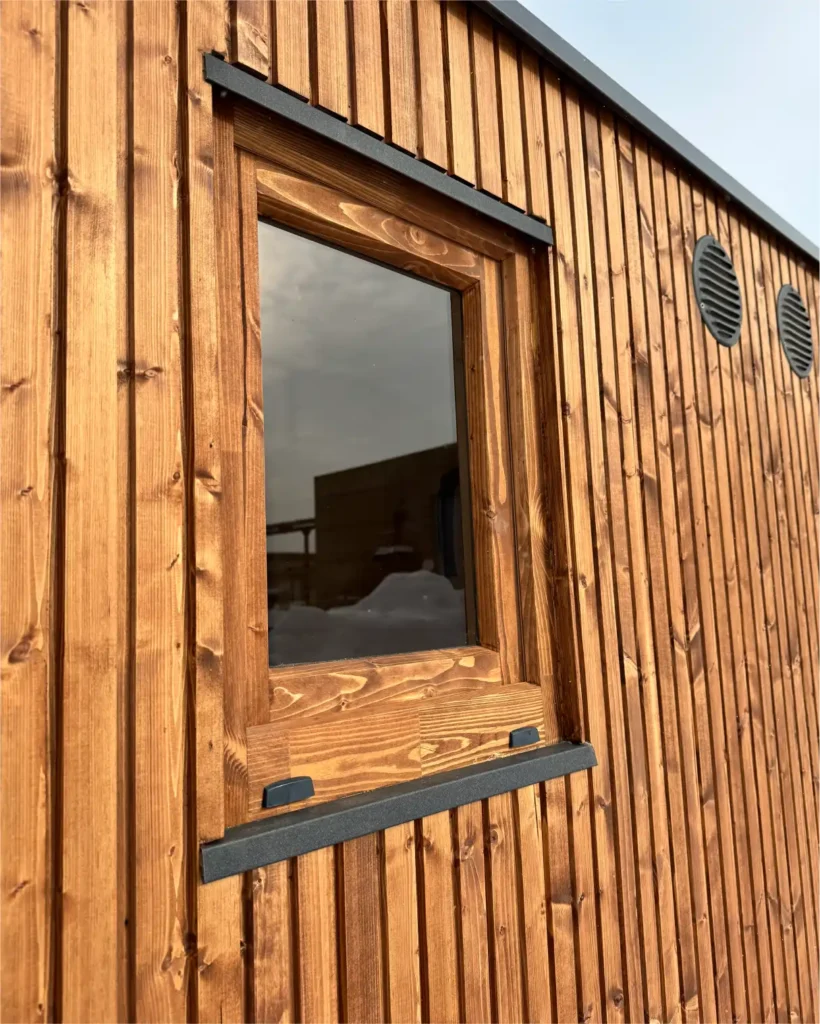

Openable sauna window
Openable sauna window, 50 × 60 cm, spruce wood frame.
13:32 Openable sauna window, 50 × 60 cm, spruce wood frame.

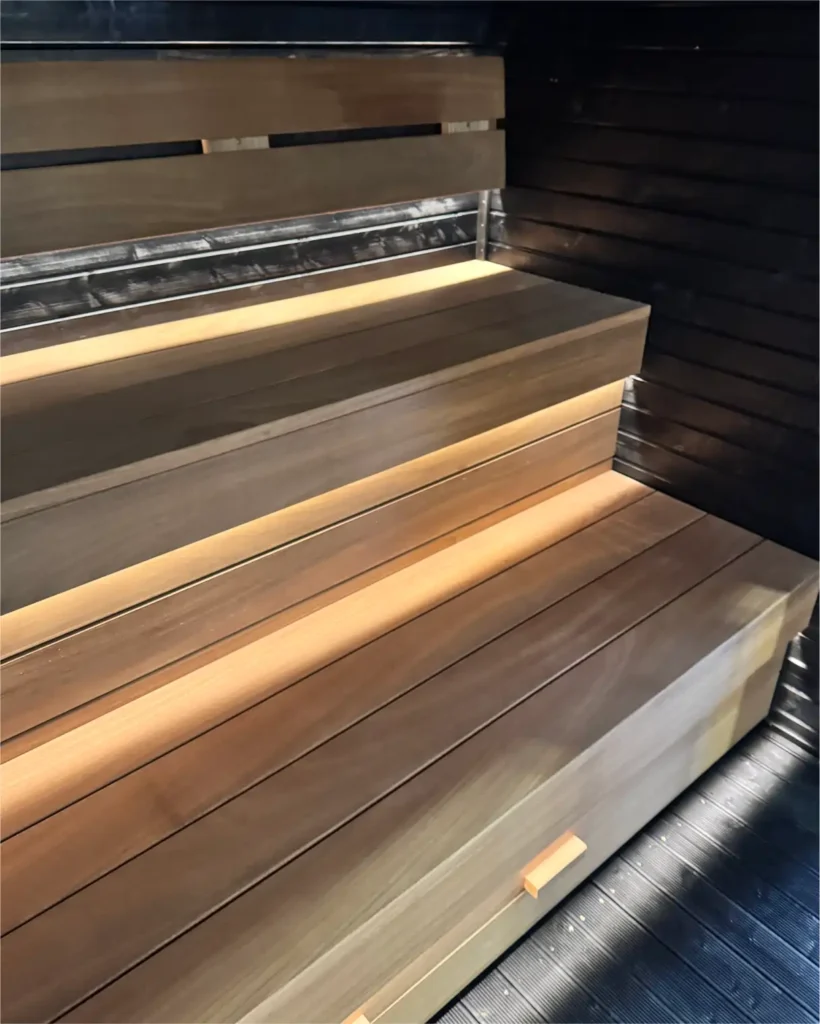

Premium abachi wood sauna loungers
Set of two abachi wood sauna loungers featuring a straight, two-tier construction with a backrest.
premium abachi wood sauna loungers

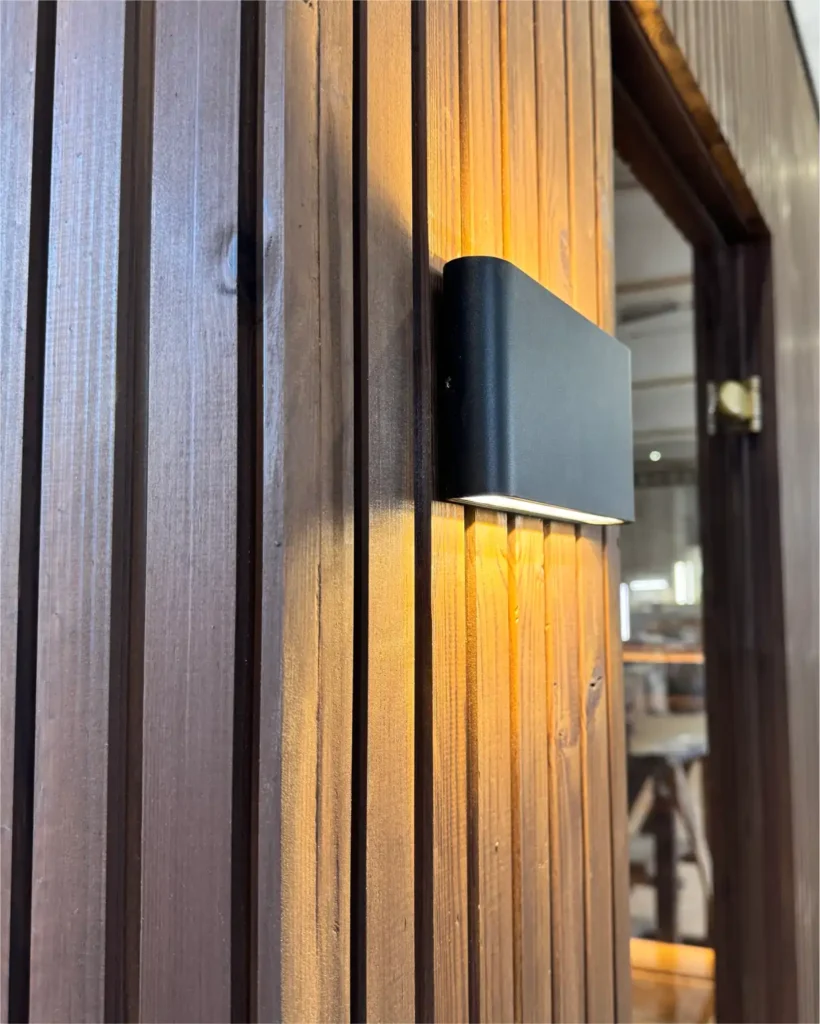

Wall-mounted outdoor LED light
Outdoor LED light with a black aluminium frame and clear glass shade. Integrated 11 W LED, IP54 rated.
Wall-mounted outdoor LED light
Harvia M3 wood-burning heater
Wood-burning stove with internal firebox, WHP1500 insulated chimney through the roof.
Harvia M3 wood-burning heater with internal firebox and uninsulated chimney through the wall.
Harvia 20PRO
Wood-burning stove with internal firebox, WHP1500 insulated chimney.
Harvia Linear 18 Compact
Wood-burning heater with internal firebox, double protective wall, WHP1500 insulated chimney.
Harvia Linear 18 Compact
Huum HIVE Wood 13
Wood-burning stove with internal firebox, WHP1500 insulated chimney through the roof.
Wood-burning stove with internal firebox
Stoveman 13R
Wood-burning stove with internal firebox, glass doors, and WHP1500 insulated chimney through the roof.
Stoveman 13R
Harvia M3 SL
Wood-burning stove with external firebox and WHP1500 insulated chimney through the roof.
Harvia M3 SL
Harvia 20 SL
Wood-burning stove with external firebox and WHP1500 insulated chimney through the roof.
Harvia 20 SL
Stoveman 13R-LS
Wood-burning stove with external firebox and WHP1500 insulated chimney through the roof.
Stoveman 13R-LS
Harvia Cilindro PC110XE
Floor-standing sauna stove equipped with an electronic control panel for temperature management. 10.8 kW
Harvia Cilindro PC90XE
HUUM Hive Mini 11
Compact stove ideal for small to medium-sized saunas; sold without a control panel. 10.5 kW.
Control panel Huum UKU Local Classic Black.
Easy and convenient sauna stove control panel UKU Local Black. 18 kW. WiFi/App-use not enabled
Control panel Huum UKU WiFi Classic Black.
Sauna control panel with WiFi functionality, enabling remote management. 18 kW.

PREPARING THE FOUNDATION

The foundation for the sauna must be even and load-bearing. The sauna’s construction is strong and stable, so the foundation can be made of concrete blocks, stones, timber boards, a terrace, or pavement. Damages caused by an uneven foundation are not covered under the warranty. Avoid placing the sauna directly on grass or soft ground. Vegetation can obstruct airflow, retain moisture, and speed up rotting.

The seller offers a 24-month manufacturing warranty against production defects, starting from the date of delivery. The warranty does not cover wooden components.
Heaters come with warranties from their respective manufacturers.

NOTE. Commercial use of the sauna is covered by a 3-month warranty.

The warranty does not cover the following
Natural characteristics of wood

→ Knots, minor cracks, and color variations in the raw spruce wood.
→ Expansion, contraction, or warping due to natural wood behavior.
→ Resin leakage or minor sap spots.

Aging and wear

→ Surface scratches, dents, or general aging of the materials.
→ Discoloration or fading from UV exposure.
→ Wear on accessories like door handles, hinges, or seating.

Maintenance and care issues

→ Mold, mildew, or rot due to lack of proper maintenance or insufƒOcient ventilation.
→ Damage resulting from failure to clean and maintain the sauna according to care guidelines.

Structural and installation concerns

→ Misalignment or structural instability caused by improper foundation or placement on uneven ground.
→ Changes made to the structure, such as drilling, cutting, or adding non-approved parts.
→ Overloading weight capacity on benches, shelves, or other structural components.

Environmental and external factors

→ Damage caused by insects, rodents, or other pests, including failure to implement proper pest
control measures.

Heater and equipment issues

→ Heater malfunctions due to improper installation, voltage issues, or failure to use a certified
professional installer.
→ Damage resulting from the use of unauthorized sauna heaters or non-approved equipment

For warranty claims, contact the seller. Defective components will typically be replaced within 30 days of proper notification. Defective components must be returned to the dealer for replacement. The buyer is responsible for transportation costs, and the cost of delivering replacement parts will not exceed the original delivery cost of the sauna.
